Buffing Ring
BUFFING RING D1=120 D2=19 16KANT B=18, Used for retaining glossyness on radius and also serves as an cleaning unit, Suitable for Homag Ambition 1100,1200 and NKR series of through feed edge banding machine.
-
Suction Cup SKIN / Friction Lining Bottom
Bottom Suction cup Skin (Friction Lining) Big 140X115x16.5 suitable for the bigger suction cup, it’s a replaceable part, since it is a wear and tear part replace it immediately if you find a problem while clamping the work piece, vacuum leakage,
-
Suction Cup SKIN / Friction Lining TOP
Top Suction cup Skin (Friction Lining) Big 140X115x16.5 suitable for the bigger suction cup, it’s a replaceable part, since it is a wear and tear part replace it immediately if you find a problem while clamping the work piece, vacuum leakage,
-
Suction Cup SKIN / Friction Lining TOP
SUCTION CUP Skin / Suction plate TOP, 125 x 75×16.5 Suitable for Homag PTP 160 / NMC 112 CNC machines Suction Cup 125x75x50, for clamping Narrow workpieces, Min. 90mm
-
Reversible Carbide Tip R2 (RCT) 82023900
Reversible carbide tips 2R, 20x12x2 for Scraping unit – With Two cutting edges, Suitable for Homag KDN 300, 430, 550, 650, Ambition 1100, 1200, and NKR series, through feed edge banding machine.
-
Cutting Plate for TOP Flush Trimming 0306
2R Cutting Plate for the TOP cutter, 22x14x2 DFC Single cutting edge
-
HEATING CARTRIDGE HLP D=12,5 L= 100 500 W 400 V 1
Heating Cartridge D= 12.5 L= 100 500W 400V for GLUE POT
-
HEATING CARTRIDGE HLP D=12,5 L= 100 400 W 400 V 2
Heating Cartridge D= 12.5 L= 100 400W 400V for GLUE POT
-
Tool Pickup station sensor
Sensor Inductive M8x1 L=16/28 SN=2 NC, Sensor for Tool identification in Tool Pickup station, Suitable for Homag CNC machines
-
Tool Changer Chuck
Tool Changer Chuck HSK 63, Suitable for Homag CNC routers with HSK 63F holder, used in Tool changer Disc.
-
Tool Pickup station Chuck
Tool Pickup Station Chuck HSK 63, Suitable for Homag CNC routers with HSK 63F holder used in Tool pickup / Loading station.
-
Drill Bit locking Screw
Drill Bit locking screw, M6 x 4 (Grub Screw) for vertical drill spindle in Homag CNC router and old BHX series machines
-
Suction Cup SKIN / Friction Lining TOP
Top Suction cup Skin (Friction Lining) , 130x30x50 suitable for 10.01.12.00379 suction cup, its a replaceable part, since it is a wear and tear part replace it immediately if you find a problem while clamping the workpiece.
-
Suction Cup 130X30X50Q
130x30x50 SUCTION CUP/ Vacuum cup, 130 x 30 x50 Suitable for Homag PTP 160 / NMC 112 CNC machines, for clamping very Narrow workpieces min. 40mm width.
-
Suction Cup 125X75X50
SUCTION CUP/ Vacuum cup, 125 x 75×50 Suitable for Homag PTP 160 / NMC 112 CNC machines, for clamping narrow workpiece with min. width of 80mm
-
SUCTION CUP 140X115X50
SUCTION CUP / Vacuum cup big 140x115x50, Suitable for Homag PTP 160 / NMC 112 CNC machines.
-
Countersunk screw CSK M5x11.5, 12.9 T20 (Must go with Blade 0467)
CSK M5x11.5, 12.9 T20 Screw for fixing Pre milling cutter BLADES 4-014-03-0467, better to replace along with Blade, use T20 Torque Key. Suitable for all Joint trimming unit cutters in through feed edge banding machines, KDF, Ambition 1200, 1400, 1600 and NKR series machines.
-
Board Sensor
Board Sensor M18x1 L 48/59, SN12, One of the important part of Throughfeed edge banding machine, for Work piece sensing, Suitable for Homag throughfeed edge banding machines Ambition 1200 and NKR 200 Series of machines.
-
Switch / Sensor
Switch / Inductor Sensor M8x1 L=29/40 SN=3 NO is a Rear end trimming unit home position sensing / feed back sensor, used in all Brandt and NKR series edge banding machines. Safe to order along with SOLID STRIP 3-604-12-0600 and fixing Screw (CSK) 4-001-23-0082 M6x10
-
Spike roll
Spike roll is used in all Brandt and NKR series edge banding machines for transporting 2 and 3mm thick edge material smoothly
-
End Trimming Roll
End trimming tracing ROLL, KD90, Dia. 37mm, Roll with complete assembly – Consisting of Bearing, Circlip and Roll, used in all Brandt and NKR series through feed edge banding machines, Change along with fixing Screw (Axis – 3-613-01-1100)
-
Position Indicator
Position Indicator DA04-02-1-001.0-I-1D D=14H7, for Board thickness setting prior to edge banding, Suitable for Homag 1100, 1200, and NKR series of machines.
-
MITRE GEAR-BOX DZ20AB I= 1:1 1
MITRE GEAR-BOX Is a drive for glue roller, DZ20AB I= 1:1 1
-
FLEXIBLE TUBE NW 17 PA6 / UL-VO (MUST GO WITH SILFLEX CABLE 2009)
FLEXIBLE TUBE NW 17 PA6 / UL-VO for Glue pot power cable protection (MUST GO WITH SILFLEX CABLE 2009)
-
SILFLEX CABLE SIHF-J 4X1.4MM2 (Supply flexible tube 2122)
SILFLEX CABLE, High resistance, high-temperature POWER cable for all Edge banding machine glue pot connections, SIHF-J 4X1.4MM2
-
GLASS FABRIC HOSE
GLASS FABRIC HOSE for Heating cartridge power cable protection D=3 X0.7
-
Resistance Thermometer PT 100 400GR
Resistance Thermometer / Temperature Sensor, PT 100, 400 GR
-
HEATING CARTRIDGE HLP D= 8,0 L= 130 100 W 400 V 1
Heating Cartridge D= 8 L= 130 100 W 400 for glue roller to maintain temp. of glue on roller
-
HEATING CARTRIDGE HLP D= 8,0 L= 130 220 W 400 V 1
Heating Cartridge D= 8 L= 130 220W 400V for Glue pot dosing assembly
-

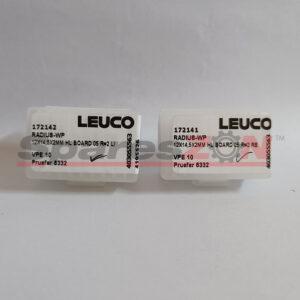

CUTTING PLATE LH Knvies (430)
2R Cutting Plate for the Bottom cutter, 14.5x12x2 Single cutting edge
-
CUTTING PLATE RH Knives (430)
2R Cutting Plate for the Top cutter, 14.5x12x2 Single cutting edge
