Buffing Ring
BUFFING RING D1=120 D2=19 16KANT B=18, Used for retaining glossyness on radius and also serves as an cleaning unit, Suitable for Homag Ambition 1100,1200 and NKR series of through feed edge banding machine.
-

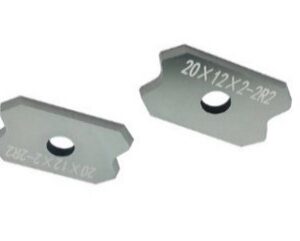

Reversible Carbide Tip R2 (RCT) 82023900
Reversible carbide tips 2R, 20x12x2 for Scraping unit – With Two cutting edges, Suitable for Homag KDN 300, 430, 550, 650, Ambition 1100, 1200, and NKR series, through feed edge banding machine.
-
Cutting Plate for TOP Flush Trimming 0306
2R Cutting Plate for the TOP cutter, 22x14x2 DFC Single cutting edge
-

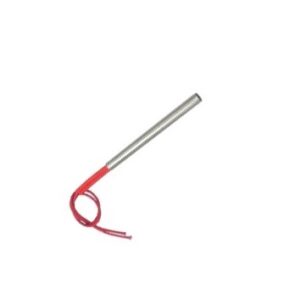

HEATING CARTRIDGE HLP D=12,5 L= 100 500 W 400 V 1
Heating Cartridge D= 12.5 L= 100 500W 400V for GLUE POT
-
HEATING CARTRIDGE HLP D=12,5 L= 100 400 W 400 V 2
Heating Cartridge D= 12.5 L= 100 400W 400V for GLUE POT
-
Countersunk screw CSK M5x11.5, 12.9 T20 (Must go with Blade 0467)
CSK M5x11.5, 12.9 T20 Screw for fixing Pre milling cutter BLADES 4-014-03-0467, better to replace along with Blade, use T20 Torque Key. Suitable for all Joint trimming unit cutters in through feed edge banding machines, KDF, Ambition 1200, 1400, 1600 and NKR series machines.
-
Board Sensor
Board Sensor M18x1 L 48/59, SN12, One of the important part of Throughfeed edge banding machine, for Work piece sensing, Suitable for Homag throughfeed edge banding machines Ambition 1200 and NKR 200 Series of machines.
-
Switch / Sensor
Switch / Inductor Sensor M8x1 L=29/40 SN=3 NO is a Rear end trimming unit home position sensing / feed back sensor, used in all Brandt and NKR series edge banding machines. Safe to order along with SOLID STRIP 3-604-12-0600 and fixing Screw (CSK) 4-001-23-0082 M6x10
-
Spike roll
Spike roll is used in all Brandt and NKR series edge banding machines for transporting 2 and 3mm thick edge material smoothly
-
End Trimming Roll
End trimming tracing ROLL, KD90, Dia. 37mm, Roll with complete assembly – Consisting of Bearing, Circlip and Roll, used in all Brandt and NKR series through feed edge banding machines, Change along with fixing Screw (Axis – 3-613-01-1100)
-
Position Indicator
Position Indicator DA04-02-1-001.0-I-1D D=14H7, for Board thickness setting prior to edge banding, Suitable for Homag 1100, 1200, and NKR series of machines.
-

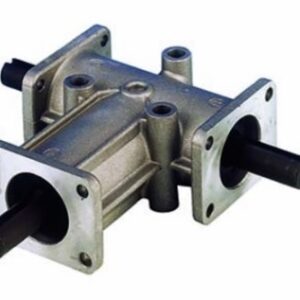

MITRE GEAR-BOX DZ20AB I= 1:1 1
MITRE GEAR-BOX Is a drive for glue roller, DZ20AB I= 1:1 1
-
FLEXIBLE TUBE NW 17 PA6 / UL-VO (MUST GO WITH SILFLEX CABLE 2009)
FLEXIBLE TUBE NW 17 PA6 / UL-VO for Glue pot power cable protection (MUST GO WITH SILFLEX CABLE 2009)
-

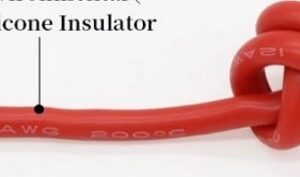

SILFLEX CABLE SIHF-J 4X1.4MM2 (Supply flexible tube 2122)
SILFLEX CABLE, High resistance, high-temperature POWER cable for all Edge banding machine glue pot connections, SIHF-J 4X1.4MM2
-
GLASS FABRIC HOSE
GLASS FABRIC HOSE for Heating cartridge power cable protection D=3 X0.7
-

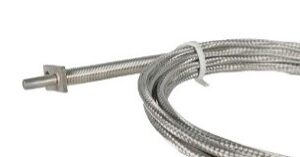

Resistance Thermometer PT 100 400GR
Resistance Thermometer / Temperature Sensor, PT 100, 400 GR
-
HEATING CARTRIDGE HLP D= 8,0 L= 130 100 W 400 V 1
Heating Cartridge D= 8 L= 130 100 W 400 for glue roller to maintain temp. of glue on roller
-
HEATING CARTRIDGE HLP D= 8,0 L= 130 220 W 400 V 1
Heating Cartridge D= 8 L= 130 220W 400V for Glue pot dosing assembly
-
Short Stroke Cylinder D50 H10 M10 Pre milling
Short stroke cylinder D 50 H10 M10 used in Pre milling unit / Joint trimming unit for smooth entry and exit of the cutter into the work piece
-
Cutting Plate for TOP Flush Trimming 0311
2R Cutting Plate for the BOTTOM cutter, 22x14x2 DFC Single cutting edge
-
Short Stroke Cylinder D63 H50 G1/4 – Pre Snipping
SHORT STROKE CYLINDER D63 H 50 G1/4 for Pre Snipping unit for cutting edge material before entering End trimming process
-
IMPULSE GENERATOR IMG30B-1435/572-AB/C-PT-K7-SD9
Feed back IMPULSE GENERATOR / Encoder IMG30B-1435/572-AB/C-PT-K7-SD9 Suitable for through feed edge banding machine Ambition 1220 and NKR 220 series
-

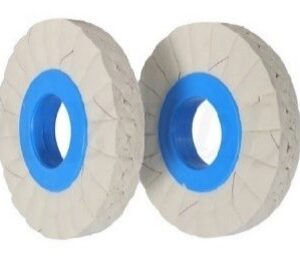

Ring 150/50×19
Buffing Wheel / Buffing Ring Dia.150x 50×19 Made of Quality Cotton Fabric to clean the edge and retain the glossiness. Suitable for Through feed edge banding machines NKR 782, Ambition 2000 / KL series
-
SPRING CHIP BREAKER
SPRING CHIP BREAKER is an integral part of Scraping unit useful in breaking the scraped thin edge material immediately after scraping, it?s a regular wear and tear part made of special material suitable for Ambition 1600 series of machines, available in different dimensions for different scraping units,
-
-
GLUE ROLLER
Glue Roller is an important part of Glue Pot for transporting Hot melt Glue to Edge material uniformly, Regular cleaning of roller is must to maintain quality edge banding. You need take care of Excess burning of Gluing recidue
-
Whisper cut Boring head / Pre Milling cutter
Complete JOINT TRIMMING / PRE MILLING CUTTER 100×43.6×30 Z3 Whisper cut
-
SHORT STOKE CYLINDER D20 H 50
0822391407 dia20, Hub50, Its an Modification Kit Cylinder for Wood lipping option
-
